Shimano Trinidad 16 A And Grappler Type J B566 Jigging Combo 5ft 6in PE6 2pc

Your Kingfish specialist

If you love being hooked up to freight train like Kingfish and
enjoy doing by the means of jigging then Shimano Trinidad
16 A and Grappler Type J B566 Jigging Combo is your ideal
weapon of choice.

The Reel
Designed to excel at inshore and bluewater applications alike – the
Shimano Trinidad 16 A Jigging Reel is unbelievably
compact but has all the latest Shimano technologies included. The
ultra light weight cold-forged aluminium Magnumlite spool and
one-piece side plate and frame feature Electronic Ionisation (EI)
surface treatment plus chrome-plated screws for the kind of extreme
corrosion protection you need in the saltwater environment. The
Trinidad A is rated for mono, fluoro and braided lines.

Aluminium Cold Forged Spool
These spools provide strength and durability over diecast aluminium
or graphite spools.

E.I. Anti-Corrosion Surface Treatment
After the adonisation process is finished, a second layer of
surface treatment is added. This treatment is forced into the
remaining surface impurities. This gives salt no hideout and also
results in an extremely smooth-to-the-touch finish. A reel with
E.I. treatment has more than double the corrosion resistance of a
standard anodised reel.

Super Stopper
Super Stopper uses a one-way bearing that eliminates backplay. This
provides the angler with instant hooksetting power.

X-Ship
By supporting the pinion gear on both ends with the S-ARB bearings
and integrating bigger drive gear, Shimano increased the gearing
efficiency and power. This results in a fishing reel with
ultra-light handle rotation; less effort and power giving a perfect
rotation even under heavy loads.

The Rod

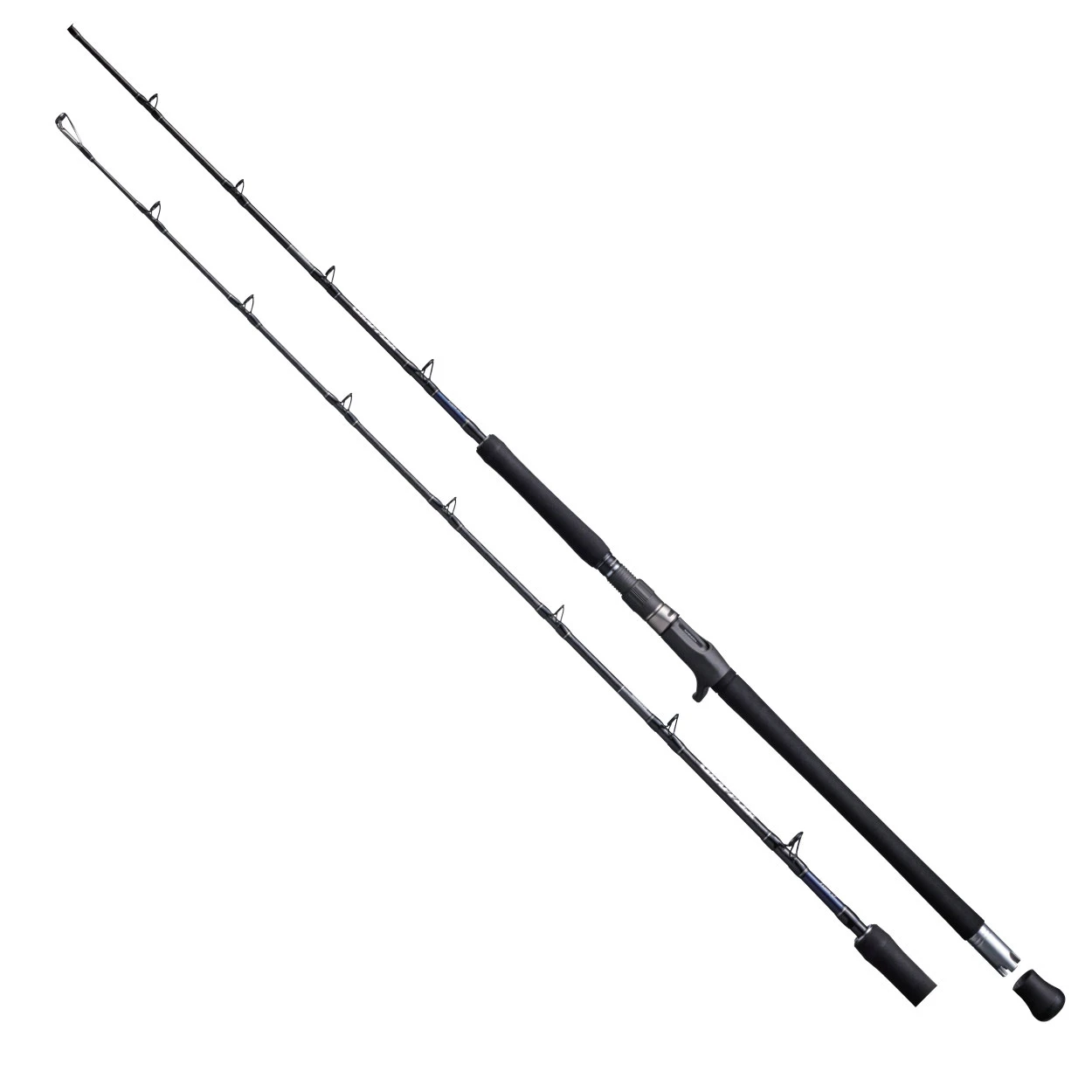

The Shimano Grappler Type J B566 Overhead Jigging
Rod features awesome newly designed blanks packed with
high-end features like Spiral X and Hi-Power X, both of which are
very rare for this price range. In addition to being light, strong
and stable during fish fights, the Shimano Grappler Type J
B566 Overhead Rod is equipped with double-footed MN guides
and rubber gimbals. This makes it an excellent rod for targeting
big game fish.

Spiral X
Spiral X Construction consists of 3 layers – a blank made of
vertical fibres, an inner layer, and an outer layer, both comprised
of carbon tape that tightly winds the blank diagonally in opposite
directions. By using this carbon tape in place of a conventional
horizontal fibre sheet, Spiral X achieves enhanced torsional
rigidity without adding extra weight. This, in turn, facilitates
instant power transmission for precise casting and fighting fish.
Through its exclusive lightweight structure, Shimano’s Spiral X
construction will definitely enhance your catching power!

H-Power X
In Hi-Power X construction, the blank’s outermost layer is
diagonally wrapped with carbon tape which forms an array of “X”
shapes. The width of the tape, its winding angle, and the part of
the rod being wrapped are fine-tuned according to the target fish
species. The flexibility allows Shimano to adjust these wraps
during construction for precise actions, enhanced overall strength
and added twist resistance. In short, Hi-Power X construction
delivers sharp and crisp rod control.

Shimano Trinidad 16 A Jigging Reel Features:

• Cold-forged aluminium Magnumlite spool
• Electronic Ionisation surface treatment
• Chrome-plated screws
• Manual metal clutch lever
• Corrosion prevention pad
• Adjustable handle shank
• Lightweight ergonomic handle knob
• Durable metal rod clamp

Shimano Trinidad 16 A Jigging Reel
Specifications:

• Retrieve Per Crank: 117cm
• Bearings: 8+1
• Max Drag: 11kg
• Mono Cap: 7kg/411m
• Drag Type: Star
• Weight: 560g
• Powerpro Capacity: 50lbs/484yds
• Gear Ratio: 6.2:1

Shimano Grappler Type J B566 Overhead Rod
Features:

• Newly designed blank
• High-end features
• Spiral X
• Hi-Power X
• Double footed MN guides
• rubber gimbal for PE6 rated rods

Shimano Grappler Type J B566 Overhead Rod
Specifications:

• Rod Product Code: B566
• Length: 5’6” (1.68m)
• Sections: 2
• Lure Rating: 300g
• PE Rating: PE 6

Shimano Trinidad 1 6A Jigging Reel Schematic Diagram
